Turbidity 濁度 / S.S.懸浮固體物

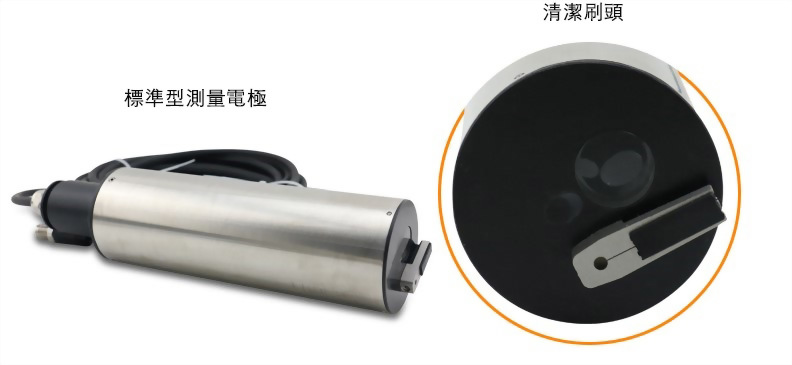

針對不同範圍及種類，備有各式電極，標準型電極皆配備清皆刷頭，讓測量更準，壽命更長!

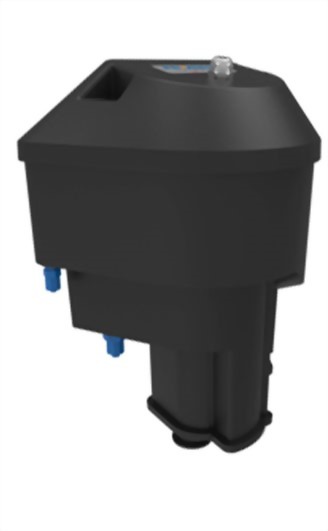

低範圍測量組
|
TRANSMITTER |
TB-100 |
||||||
|
MEASURING MODE |
Turbidity / Suspended Solids |
||||||
|
MEASURING UNIT |
Turb: NTU
S.S.: mg/L |
||||||
|
MEASURING RANGE |
Depends on which sensor as below |
||||||
|
MEASURING ACCURACY |
Turb.: ±2% or 0.1 NTU / S.S.: ±5% |
||||||
|
AMBIENT TEMPERATURE |
0 to 50 ℃ |
||||||
|
STORAGE TEMPERATURE |
-15 to 65 ℃ |
||||||
|
DISPLAY |
2.8 inch backlit LCD |
||||||
|
ANALOG OUTPUT |
Isolated DC 4 to 20 mA
Max load 750 / Accuracy 0.2%FS |
||||||
|
SERIAL INTERFACE |
Isolated MODBUS-RTU |
||||||
|
POWER SUPPLY |
100 VAC or 220 VAC |
24 VDC |
|||||
|
CONTACT OUTPUT |
Two independent 240 VAC / 3A |
||||||
|
MOUNTING |
Wall / Pipe / Panel |
||||||
|
DIMENSIONS |
100 x 100 x 150 mm |
||||||
|
CUT DIMENSIONS |
93 x 93 |
||||||
|
WEIGHT |
0.65 Kg |
||||||
|
INGRESS PROTECTION |
IP54 |
||||||
|
SENSOR |
Turb. |
S.S. |
|||||
|
MEASURING RANGE |
0.01 to 100 NTU |
0.01 to 4000 NTU |
0.01 to 20000
mg/L |
0.01 to 45000
mg/L |
0.01 to 120000
mg/L |
||
|
DIMENSIONS |
Ø 60 x 256 mm |
||||||
|
MATERIAL |
CASE |
PVC |
|||||
|
O-RING |
Fluorocarbon Rubber |
||||||
|
INGRESS PROTECTION |
IP68 / NEMA6P |
||||||
|
FLOW RATE |
≦ 2.5 m/s (8.2 ft/s) |
||||||
|
AMBIENT TEMPERATURE |
0 to 45 ℃ |
||||||
|
PRESSURE |
≦ 0.4 MPa |
||||||
|
CLEANING SYSTEM |
Auto Cleaning upon powering on |
||||||
